HeartSine Samaritan PAD 350P AED

HeartSine Samaritan PAD 350P AED dirancang agar tahan dalam jangka waktu yang lama, terjangkau dan mudah digunakan oleh masyarakat umum (user friendly). Tersedia dalam perangkat yang kecil dan ringan.

Quantity:



Fitur HeartSine Samaritan PAD 350P AED:

  • Dengan fitur real-time CPR coaching yang akan memandu operator selama proses resusitasi.
  • Hanya dengan 2 tombol ON/OFF dan tombol SHOCK yang simpel, mudah digunakan dan tidak terlihat mengintimidasi
  • Bentuk yang portable serta ringan sangat mudah untuk dibawa.
  • Memiliki SCOPE biphasic technology sehingga teruji untuk digunakan oleh publik atau masyarakat ketika terjadi kasus henti jantung mendadak.
  • Perlindungan tertinggi terhadap air dan debu dengan sertifikasi IP56.
  • Anda akan merasa terlindungi dengan garansi perangkat AED selama 8 tahun.



Waveform

Optimised, impedance-based, biphasic truncated exponential, escalating waveform, called Self Compensating Output Pulse Envelope (SCOPE), which compensates voltage, slope (tilt) and duration for patient impedance
Patient impedance range

20-230 ohm
Patient analysis systems

Evaluates patient's ECG, electrode contact integrity and patient impedance to determine if defibrillation is required.
Energy protocol
  • Adult: 150J, 150J, 200J
  • Pediatric: 50J, 50J, 50J
Time to shock following CPR (150J)

SAM 350P: Typically, 8 seconds
Charge time

Typically, 150J in < 8 seconds, 200 J in < 12 seconds
Guide recommendations
  • HeartSine AED follows the recommendations in the latest AED guidelines for the European Resuscitation Council (ERC), American Heart Association (AHA) and International Liaison Committee on Resuscitation (ILCOR).
  • HeartSine AED is consistent with current guidelines for CPR (energy protocols, CPR protocols, quality assurance)
Semi-auto

HeartSine SAM 350P: Upon delivery, the HeartSine samaritan PAD 350P is configured for semi-automatic operation (shock button press needed to deliver a shock).
Intended use

The devices are intended for use by personnel who have been trained in their operation. Training on CPR and in the use of an AED is strongly recommended for users. However, in an emergency situation the HeartSine samaritan PAD may be used by an untrained lay rescuer.
Electrode placements
  • HeartSine AED provides visual prompts (pictures) for placement of the electrodes:
    -Anterior-lateral (Adult)
    -Anterior-posterior or Anterior-lateral (Pediatric).

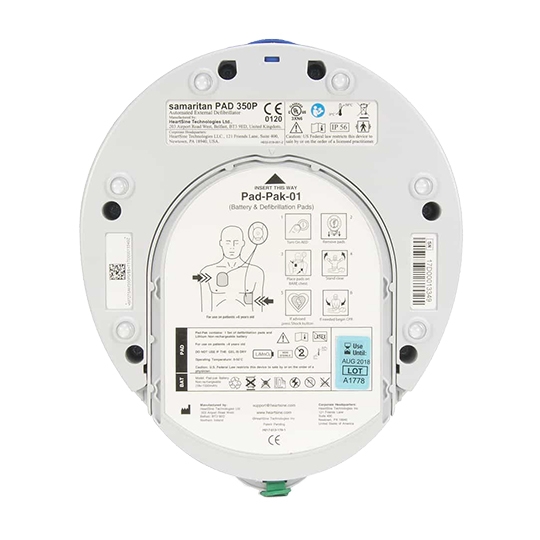

  • The HeartSine AED uses an interchangeable battery and electrode pack called Pad-Pak. The HeartSine AED in combination with an adult Pad-Pak is suitable for use on patients of over 25 kg (55 lb) in weight or equivalent to a child of approximately eight years old or over.
  • For use on smaller children (from 1 to 8 years old), a Pediatric-Pak is used. If a Pediatric-Pak or an alternative suitable defibrillator is not available, an adult Pad-Pak may be used.
Batteries
  • HeartSine AED uses non-rechargeable, single-use combined defibrillation electrode and battery cartridge (Pad-Pak or Pediatric- Pak). The battery is lithium manganese dioxide (Li/MnO2) 18V.
  • HeartSine Gateway (on the HeartSine Connected AED) uses four CR123A 3V, non-rechargeable batteries.
Warranty

HeartSine AED is backed by an 8-year limited warranty
